smartCRT™ Hydraulic

InternalExternal

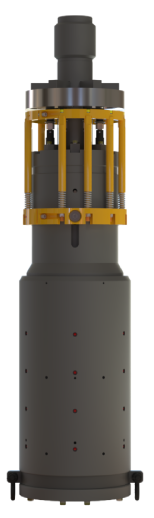

The smartCRT is an electronically integrated, game-changing casing running tool that streamlines operations while enhancing safety, efficiency, and repeatability. Its hydraulically operated, modular design enables seamless make-up, rotation, reciprocation, filling, circulation, and Casing while Drilling (CwD).

Fully “smarTR ready,” smartCRT incorporates wireless control and digital interaction through a driller’s display, providing clear and concise communication. The tool is equipped with a link tilt system, dynamic bails, and an optional remote belly pack for wireless operation, ensuring optimal safety and ease of use.

With its user-friendly design, low maintenance requirements, and versatile functionality, the smartCRT is the most adaptable and cost-effective CRT on the market, delivering unmatched performance and operational savings.

The smartCRT is an electronically integrated, game-changing casing running tool that streamlines operations while enhancing safety, efficiency, and repeatability. Its hydraulically operated, modular design enables seamless make-up, rotation, reciprocation, filling, circulation, and Casing while Drilling (CwD).

Fully “smarTR ready,” smartCRT incorporates wireless control and digital interaction through a driller’s display, providing clear and concise communication. The tool is equipped with a link tilt system, dynamic bails, and an optional remote belly pack for wireless operation, ensuring optimal safety and ease of use.

With its user-friendly design, low maintenance requirements, and versatile functionality, the smartCRT is the most adaptable and cost-effective CRT on the market, delivering unmatched performance and operational savings.

Key Benefits of

Safety
Repeatability
Integration
Cost Efficiency
Interchangeability

Modular Versatility

Designed to meet all casing application requirements and adaptable to various use cases.

Large Gripping Area

Increased Hook Load rating while maintaining casing integrity.

Bearing Sensors

Used to monitor bearing performance

Link Tilt System

Dynamic Bails for extended reach and optimization

Wireless Operation

“Clear the Floor” Operational safety

Integrated Torque Turn System (NGTTS)

NGTTS sub can be removed for easy calibration

Set Down Weight

100,000 lbs

Max Rotation Speed

200 RPM

Operating Temperature

(-40 to 140 °F)
(-40 to 60 °C)

Max Torque

90,000 ft-lbs

Max Hydraulic Pressure

3,000 psi

Modular Design

The ability to handle a wide range of mandrels (4.5” to 30”) with just one tool has several benefits:

  • A larger range of casing sizes can be accommodated
  • Significant inventory and spare parts costs are reduced
  • Minimal cost for additional sizes added to a fleet

Activation Process

Driller removal from activation, optimizing workflow and reducing operational complexity.

Optimized Speed and Repeatability

Precision engineering enables higher throughput with consistent performance, improving cycle times and KPI performance.

Wireless Remote Operation

Fully wireless control integration reduces the need for human presence in high-risk zones, enhancing operational safety in hazardous environments.

Red Zone Mitigation

Remote operation reduces personnel exposure in “Red Zone” areas, meeting or exceeding industry safety standards for hazardous operations.
